Reference: 300200.GPRO | Availability: 8 weeks | Weight: 180 Kg
|
|
Technical Features
|
| Structure |

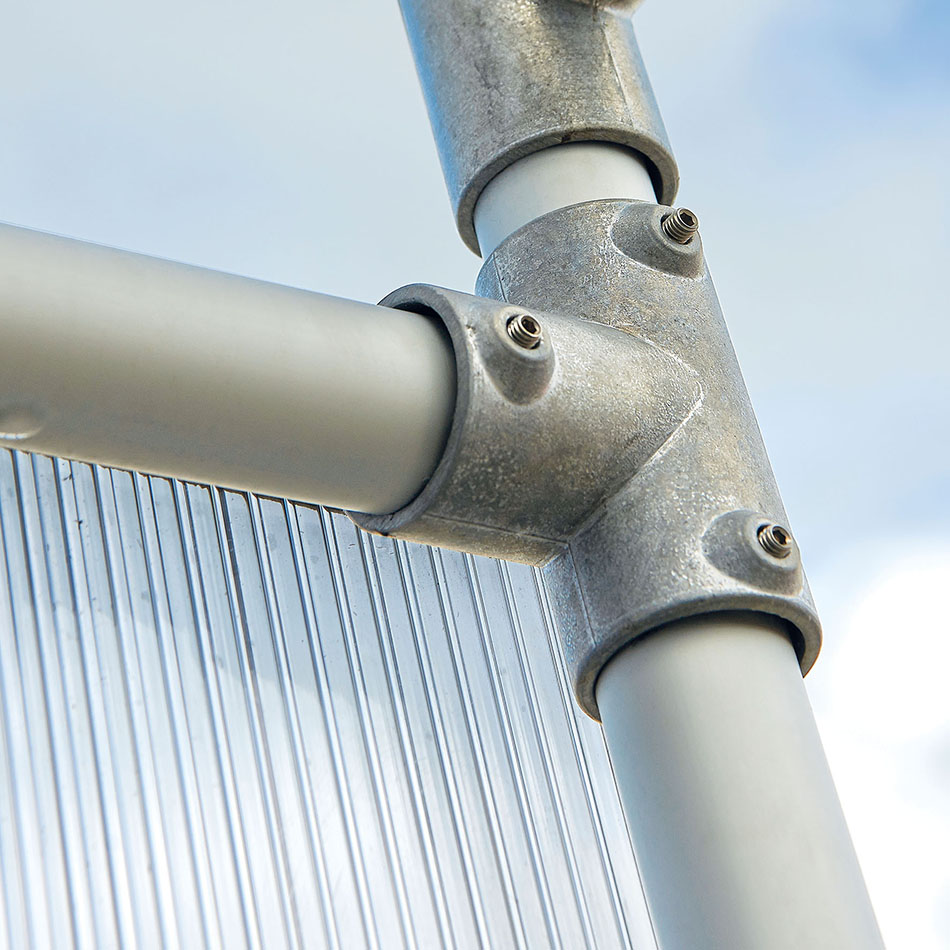

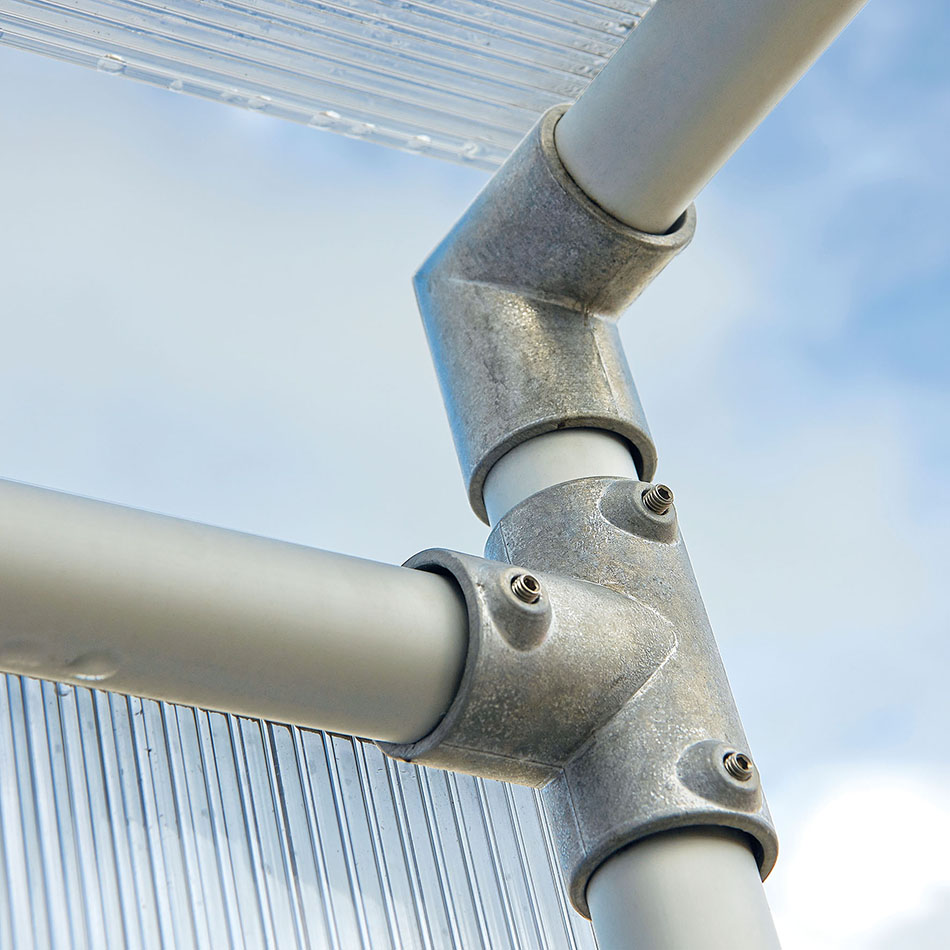

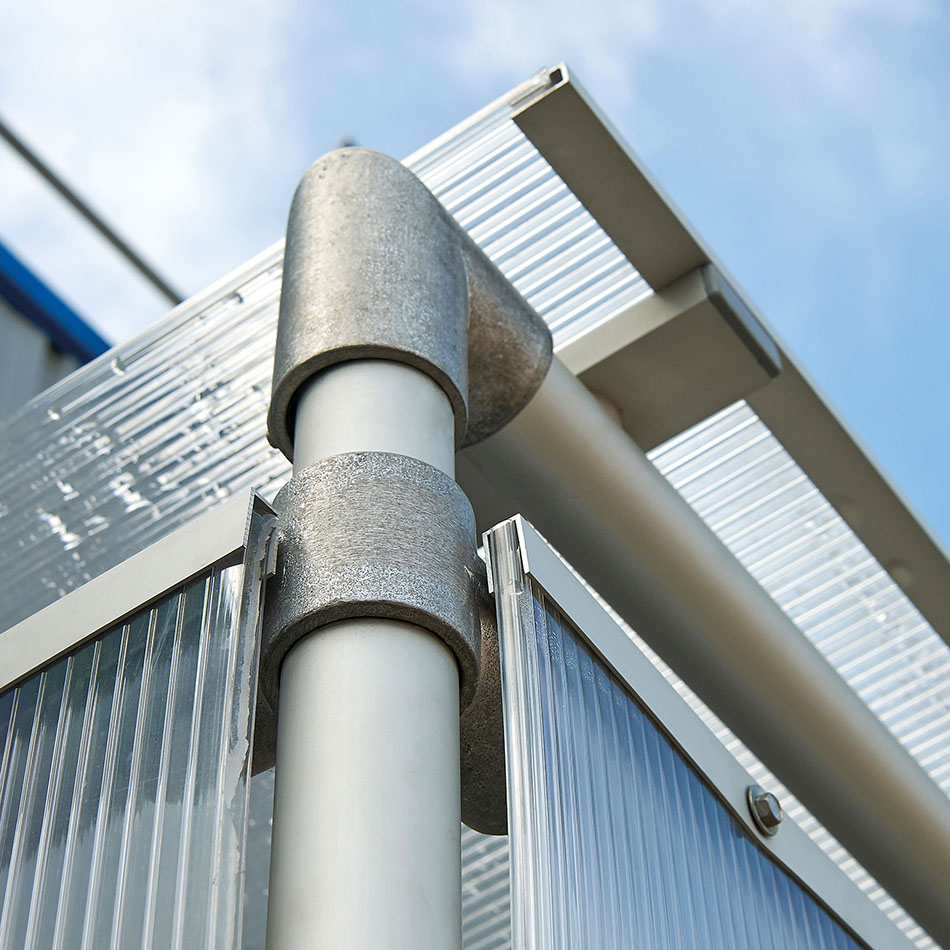

Galvanised steel tube framework, zinc-primed and painted in our colours. |
| Roof |
Polycarbonate panels, UV-resistant, with integrated rainwater drainage and smoke ventilation apertures. |
| Side Panels |
Perforated galvanised steel sheet or polycarbonate infill panels for optimal airflow and smoke dispersion. |
| Dimensions |
Length: 2000 mm | Depth: 1500 mm | Height: 2300 mm (custom sizes available upon request). |
| Available Colours |
Procity Grey, RAL 9010, RAL 5010, RAL 3020, RAL 9005, RAL 7044, RAL 3004, RAL 6005, RAL 8017, Corten effect |
| Installation |
Surface mounted on base plates with anchor bolts (supplied). Delivered partially assembled for efficient transport. |
| Compliance Features |
Designed to meet UK smoking shelter regulations: open-sided construction | Minimum 50% open perimeter | Natural ventilation | Non-enclosed design |
| Options |
Integrated ash receptacle | LED lighting kit | Signage panel for designated smoking area | Fire-resistant floor mat | Wind deflector panels |
| Coastal Installation |
If installed within 5 miles of the coast, we strongly recommend an additional weather treatment for the steel work (hot-dip galvanising). Contact us for more details. |
|
Description
|
|
The Compliant Economy Smoking Shelter from Branson Leisure provides a practical, regulation-compliant solution for designated smoking areas in workplaces, public buildings, hospitals, and commercial premises. Engineered to meet UK smoking shelter legislation while offering weather protection and effective smoke dispersion, this shelter is ideal for employers, facility managers, and local authorities seeking durable and legally compliant outdoor smoking facilities.
Constructed with a robust galvanised steel framework and featuring perforated side panels for optimal airflow, the Compliant Economy shelter delivers exceptional durability, safety, and regulatory compliance in high-use environments.
|
|
Regulatory Compliance and Design
|
|
The Compliant Economy Smoking Shelter is specifically designed to meet UK Health and Safety Executive (HSE) and local authority guidelines for outdoor smoking shelters:
- Open-sided construction: Minimum 50% of the perimeter remains open to ensure natural ventilation and prevent smoke accumulation.
- Non-enclosed design: No solid walls or doors that could classify the structure as an enclosed space under smoking legislation.
- Effective smoke dispersion: Perforated panels and roof ventilation apertures promote airflow while providing shelter from rain and wind.
- Clear sightlines: Open design maintains visibility for security and supervision purposes.
The shelter's contemporary profile with gently curved roof lines provides effective weather protection while maintaining visual openness and compliance with planning requirements.
|
|
Practical Features and Options
|
|
The Compliant Economy Smoking Shelter includes thoughtful features to enhance usability and maintenance:
- Integrated ash receptacle: Optional fire-safe ash bin with removable liner for easy emptying and cleaning.
- LED lighting: Optional weatherproof LED kit provides illumination for evening use and enhances user safety.
- Signage integration: Mounting points for "Designated Smoking Area" signs or employer branding.
- Wind management: Optional deflector panels reduce wind chill while maintaining regulatory compliance.
- Fire safety: All materials are non-combustible or fire-retardant; optional fire-resistant floor mat protects underlying surfaces.
Available in our full palette of RAL colours plus the popular Corten effect finish, the shelter can be tailored to complement existing site aesthetics or corporate branding.
|
|
Installation and Maintenance
|
|
The Compliant Economy Smoking Shelter is engineered for efficient, professional installation. Supplied partially assembled to optimise transport logistics, the shelter is designed for straightforward on-site assembly by qualified teams. Surface mounting on robust base plates with supplied anchor bolts ensures stable, secure placement on various substrates including concrete, paving, and tarmac.
Maintenance is minimal: the galvanised and painted steel framework resists corrosion and fading, while polycarbonate panels are easy to clean with standard methods. Ash receptacles feature removable liners for hygienic waste disposal. For installations in coastal or high-salinity environments, we recommend specifying additional hot-dip galvanising treatment to maximise longevity—please contact our technical team for guidance.
|
|
About Branson Leisure
|
|
At Branson Leisure, we combine over 35 years of French manufacturing expertise with a passion for creating beautiful, functional urban furniture and workplace solutions. All our products, including the Compliant Economy Smoking Shelter, are designed and produced in our facilities in the Loir-et-Cher and Sarthe regions, adhering to the highest standards of quality, durability, and environmental responsibility.
Our comprehensive range of workplace and public realm furniture—from smoking shelters and benches to planters, litter bins, and wayfinding solutions—enables cohesive, high-quality site projects. By choosing Branson Leisure, you benefit from bespoke colour matching, technical consultation, and a commitment to sustainable design that enhances functional spaces for years to come.
Trust Branson Leisure to deliver the Compliant Economy Smoking Shelter—a practical, regulation-compliant solution that supports workplace wellbeing while contributing to the aesthetic integrity and functionality of your site infrastructure.
|
|
COMPLIANT Collection
|
|
The Compliant collection celebrates thoughtful, regulation-aware design for workplace and public infrastructure. With its robust construction, versatile customisation options, and refined aesthetic, the Compliant Economy Smoking Shelter is an ideal choice for projects that prioritise legal compliance, user comfort, and visual harmony within any environment.
|
