Reference: 529255.GPRO | Specification Date: 25/03/2026
|
|
Technical Features
|
| Available Lengths |
2520 mm (standard module) | 5020 mm (double module) |
| Overall Dimensions |
Height: 2880 mm | Depth: 2318 mm |
| Parking Capacity |
Up to 6 bicycles per module (depending on bicycle stand or rack chosen). |
| Structure |
Steel tubes 80 x 80 mm for exceptional structural integrity and impact resistance. |
| Roof Construction |
60 x 60 mm steel-tube crossbars with anti-UV-treated 10 mm cellular polycarbonate panels for weather protection and natural light transmission. |
| Rear and Side Cladding |
Aluminium profile frame with anti-UV-treated 10 mm cellular polycarbonate panels for wind protection and aesthetic continuity. |
| Wind Protectors |
Sheet metal wind protectors available for rear or sides to enhance weather protection in exposed locations. |
| Finish Options |
Single-colour or two-colour galvanised and painted in our colours. |
| Available Colours |
Procity Grey, RAL 9010, RAL 5010, RAL 3020, RAL 9005, RAL 7044, RAL 3004, RAL 6005, RAL 8017, Corten effect |
| Extension Option |
Extension module, 2580 mm length, for flexible capacity expansion. |
| Installation |

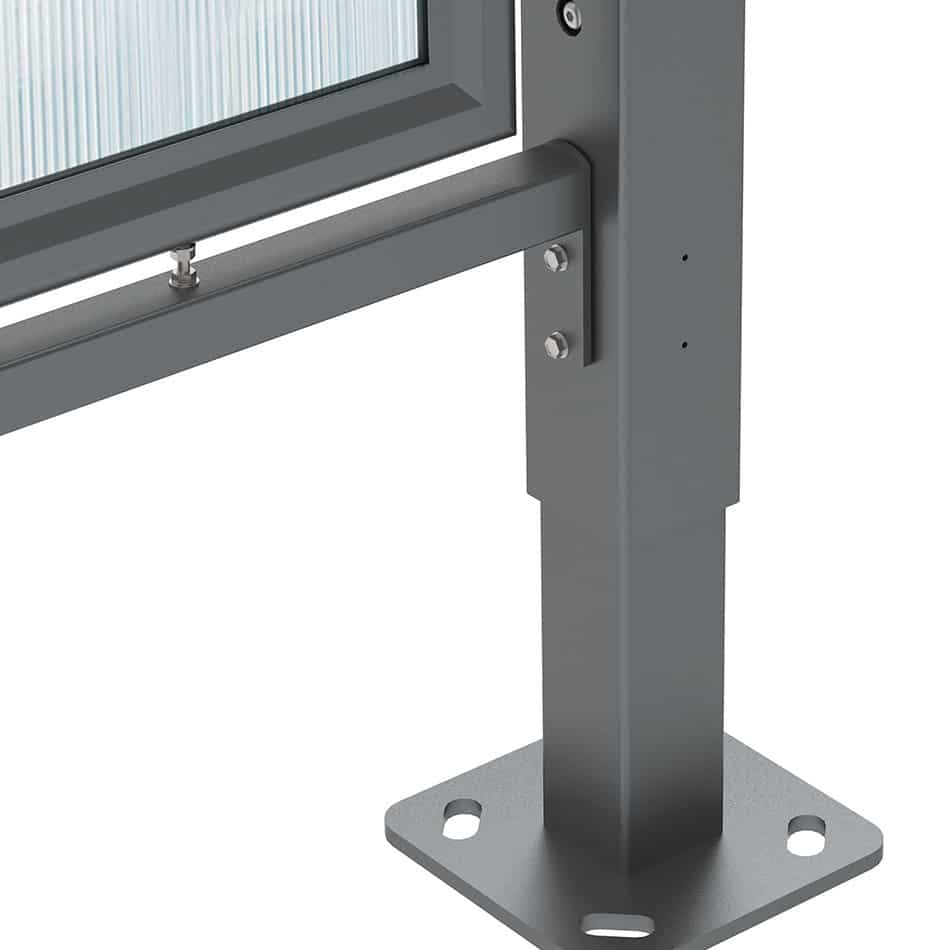

On galvanised base plates with height-adjustable legs; expansion bolts included for secure permanent placement on concrete, paving, or tarmac. |
| Signage |

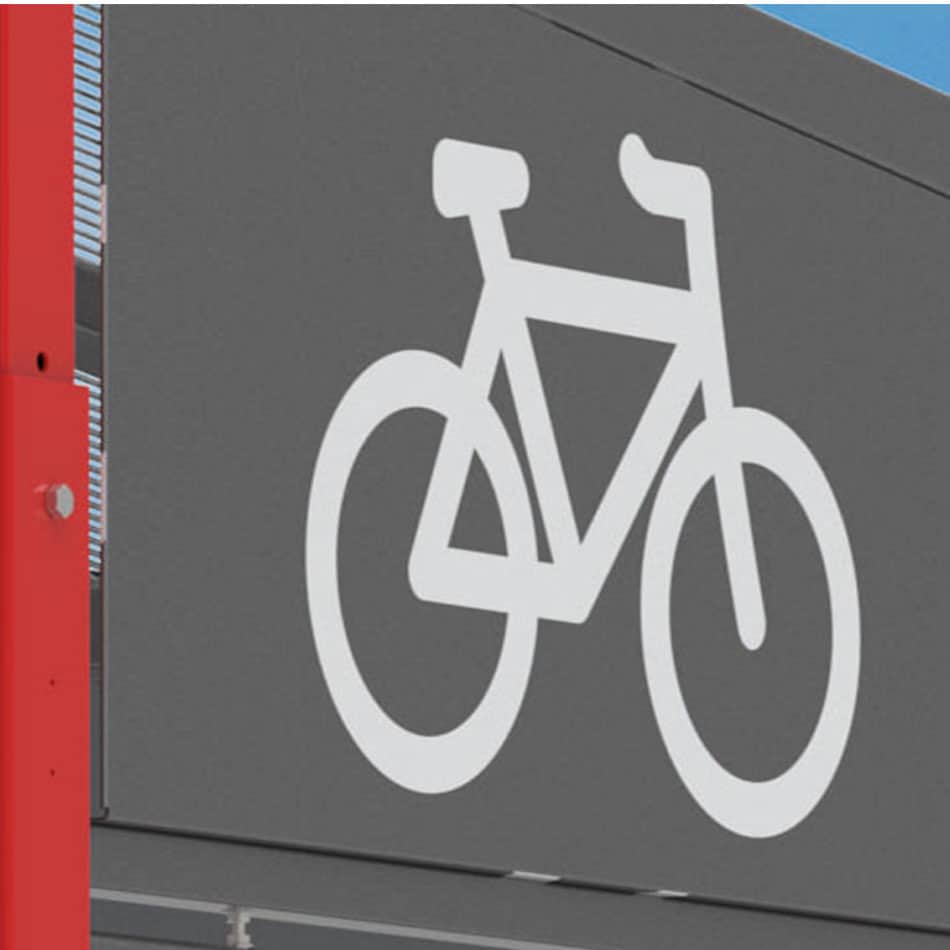

White bicycle decal included for clear user identification and wayfinding. |
| Coastal Installation |
If installed within 5 miles of the coast, we strongly recommend an additional weather treatment for the steel work (hot-dip galvanising). Contact us for more details. |
|
Description
|
|

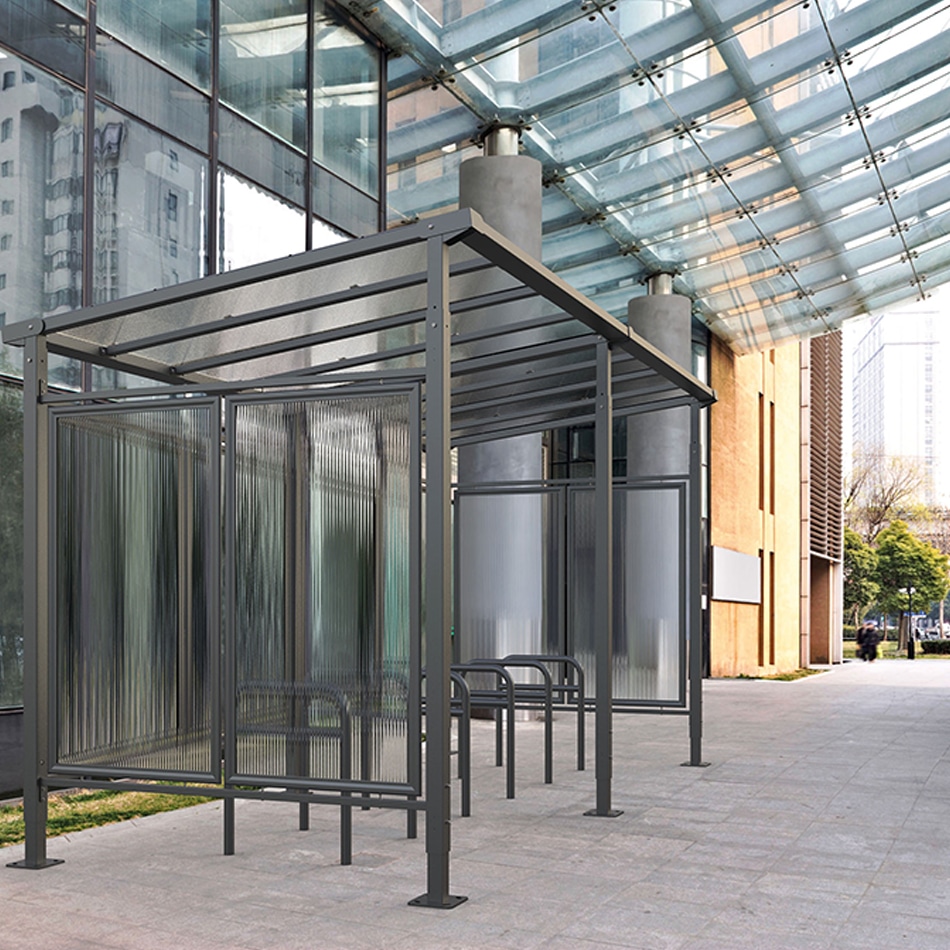

At Branson Leisure, we are renowned for our innovative designs and superior quality materials, which come together to create not just products, but solutions. One such solution is the Milan Bicycle Shelter, a perfect blend of classic design and modern style, aimed at meeting the needs of both communities and businesses.
|
|
Technical Specifications
|
|
Our product is an embodiment of strength, durability, and functionality. The Milan Bicycle Shelter comes with a robust structure, featuring steel tubes that measure 80 x 80 mm. This is further complemented by a roof made of 60 x 60 mm steel-tube crossbars, ensuring a solid shell. Adding to its durability is the anti-UV treated 10 mm cellular polycarbonate panels that protect against sun damage. The finish is available in single-colour or two-colour options, galvanised and painted in our unique Branson Leisure colours. But what sets our product apart is its extension module, which extends up to 2580 mm long, offering an additional space for bicycle storage. The installation process is straightforward, thanks to galvanised base plates, height-adjustable legs, and included expansion bolts. The overall dimensions measure 2520 mm wide (standard), 2880 mm high, and 2318 mm deep, rendering it an optimal choice for urban spaces.
|
|
Practical Features and Maintenance
|
|
The Milan Bicycle Shelter is engineered for efficient installation and minimal maintenance:
- Modular capacity: Up to 6 bicycles per 2520 mm module; double modules and extension options enable flexible scaling.
- Robust structure: 80 x 80 mm steel tubes provide exceptional structural integrity and impact resistance for long-term durability.
- Weather protection: Anti-UV-treated 10 mm cellular polycarbonate panels provide excellent resistance to fading, impact, and weathering while transmitting natural light.
- Wind protection options: Sheet metal wind protectors for rear or sides enhance shelter performance in exposed locations.
- Easy installation: Height-adjustable legs on galvanised base plates accommodate uneven ground; expansion bolts included for secure fixation.
- Low maintenance: Galvanised and painted steel frame resists corrosion; polycarbonate panels require only occasional cleaning.
- Coastal protection: Optional hot-dip galvanising treatment available for installations within 5 miles of the coast.
- Clear signage: White bicycle decal included for intuitive user identification and wayfinding.
The robust construction and high-quality materials ensure decades of reliable performance with minimal upkeep.
|
|
Applications of the Milan Bicycle Shelter
|
|
Our purpose at Branson Leisure is not just to manufacture, but to engineer solutions that make a difference. The Milan Bicycle Shelter is one such solution, designed for public spaces, commercial buildings, educational facilities, and more. Its classic yet modern design evokes a sense of elegance, making it a welcome addition to any environment. The module extension offers added functionality, allowing more bicycles to be stored securely. Height-adjustable legs ensure that the shelter can be installed on uneven ground, making it a versatile choice for different environments. Furthermore, it is designed to withstand the elements, offering a long-lasting solution for bicycle storage.
- Municipalities: Enhancing public cycling infrastructure in town centres, transport hubs, and park-and-ride facilities with weather-protected, scalable solutions.
- Educational institutions: Supporting sustainable travel initiatives at schools, colleges, and universities with secure, aesthetically pleasing bicycle parking.
- Commercial premises: Providing attractive, functional bicycle storage for employees and customers at offices, retail parks, and hospitality venues.
- Healthcare facilities: Encouraging active travel among staff and visitors with sheltered, accessible bicycle parking.
- Residential developments: Offering secure, weather-protected bicycle storage for apartment complexes and housing estates.
Available in single-colour or two-colour finishes from our full RAL palette plus the popular Corten effect, the shelter can be tailored to complement existing streetscape elements or corporate branding.
|
|
About Branson Leisure
|
|
In essence, the Milan Bicycle Shelter is a testament to Branson Leisure's commitment to quality, functionality, and style. Engineered with precision and crafted with care, it offers a reliable and aesthetically pleasing solution for bicycle storage. It's not just a product; it's a solution from Branson Leisure, where design meets functionality.
At Branson Leisure, we combine over 35 years of French manufacturing expertise with a passion for creating beautiful, functional urban furniture and sustainable transport solutions. All our products, including the Milan Bicycle Shelter, are designed and produced in our facilities in the Loir-et-Cher and Sarthe regions, adhering to the highest standards of quality, durability, and environmental responsibility.
Our comprehensive range of street furniture—from bicycle shelters and stands to benches, litter bins, planters, and wayfinding solutions—enables cohesive, high-quality public realm projects. By choosing Branson Leisure, you benefit from bespoke colour matching, technical consultation, and a commitment to sustainable design that enhances community spaces for generations.
|
|
MILAN Collection
|
|
The Milan collection celebrates classic design with modern style for urban street furniture. With its robust 80 x 80 mm steel construction, anti-UV-treated polycarbonate roofing, modular capacity options, versatile single or two-colour finish choices, and flexible installation with height-adjustable legs, the Milan Bicycle Shelter is an ideal choice for projects that prioritise visual distinction, weather protection, durability, user accessibility, and functional excellence within sustainable urban transport infrastructure.
|
