Reference: 529650.GPRO | Specification Date: 25/03/2026
|
|
Technical Features
|
| Available Lengths |
2500 mm (standard) | 5000 mm (double module) |
| Total Depth |
1500 mm for comfortable passenger waiting space. |
| Square Posts |
Steel tube 120 x 120 mm for exceptional structural integrity and stability. |
| Under Roof Height |
Min. 2250 mm | Max. 2390 mm for universal accessibility and clear sightlines. |
| Roof Construction |
Bronze tinted 8 mm polycarbonate with anti-UV treatment for weather protection, natural light transmission, and distinctive aesthetic appeal. |
| Roof Support Beams |
Hot-dip galvanised steel for robust support and long-term corrosion resistance. |
| Rear and Side Cladding |
8 mm safety glass for enhanced passenger protection, visual openness, and unparalleled brightness. |
| Cladding Attachments |
Pinch-grip system made from Zamak alloy with brushed finish for secure, aesthetically refined panel fixation. |
| Bus Stop Sign |
180 mm high x 815 mm wide, galvanised steel sheet lacquered in RAL 9006 for clear visibility and durability. |
| Timetable Display Case |
750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium for durable, weather-resistant information display. |
| Advertising Space |
"2000" display case (1750 mm x 1200 mm display area) for commercial or public information messaging. |
| Finish |
Galvanised and painted in our colours. |
| Available Colours |
Procity Grey, RAL 9010, RAL 5010, RAL 3020, RAL 9005, RAL 7044, RAL 3004, RAL 6005, RAL 8017, Corten effect |
| Installation |
Concreted directly into ground for secure permanent placement. |
| Coastal Installation |
If installed within 5 miles of the coast, we strongly recommend an additional weather treatment for the steel work (hot-dip galvanising). Contact us for more details. |
|
Description
|
|

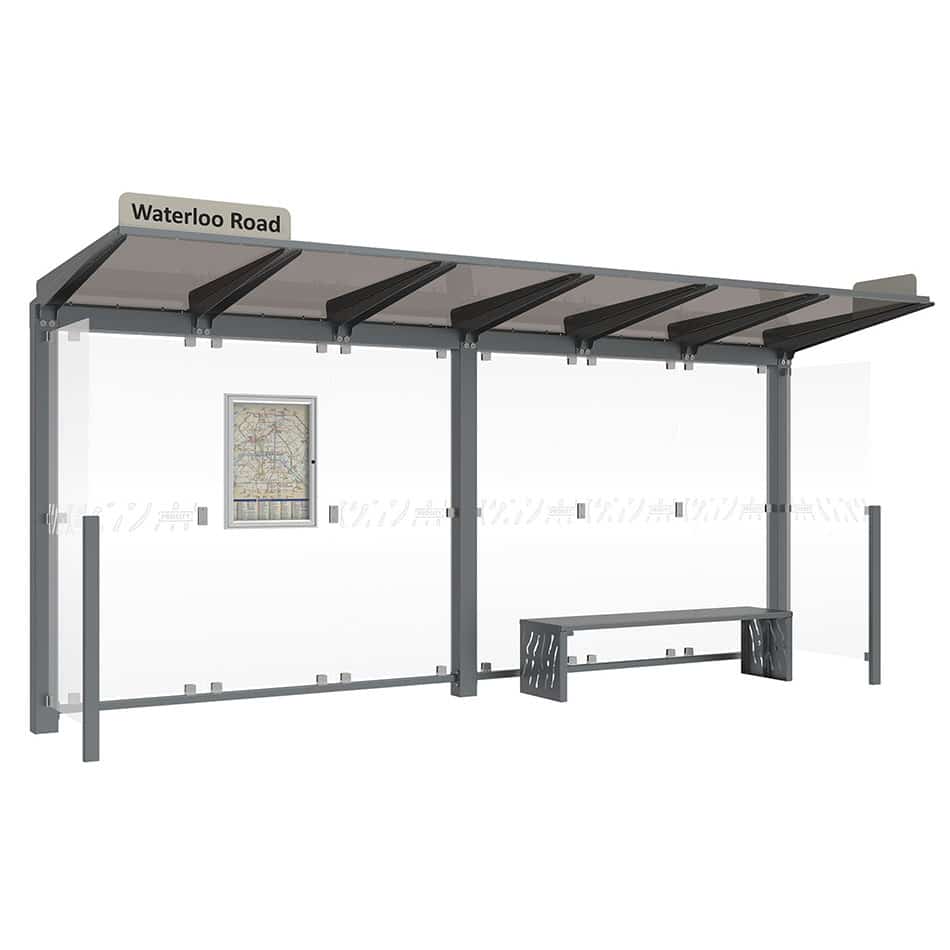

Branson Leisure proudly presents the Venice Bus Shelter, a noteworthy addition to our extensive range of urban furniture products designed to meet the multifaceted needs of both municipalities and private enterprises. Our Venice Bus Shelter is meticulously crafted to combine functionality, durability, and aesthetics, reflecting our dedication to excellence in urban design.
|
|
Structural Integrity and Design
|
|
The Venice Bus Shelter features a unique cantilevered style. The rear cladding supported by two single posts provides unparalleled brightness, creating an open, airy waiting environment that enhances passenger comfort and visual appeal.

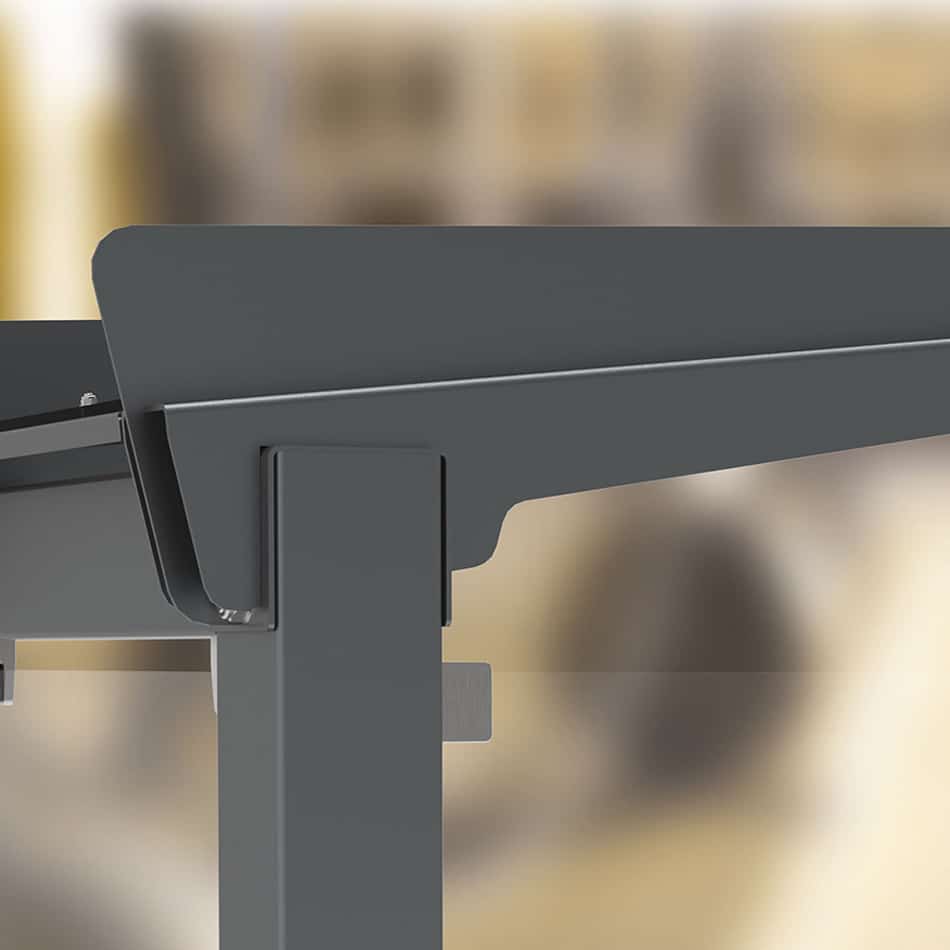

The robust skeleton of the Venice Bus Shelter is supported by square steel posts of 120 x 120 mm, ensuring exceptional stability and longevity. The under-roof height ranges between a minimum of 2250 mm and a maximum of 2390 mm, providing ample headroom for users. The roof is ingeniously constructed from 8 mm bronze-tinted polycarbonate treated with anti-UV technology, offering both protection and visual appeal.
Our roof support beams, manufactured from hot-dip galvanised steel, provide additional structural support while enhancing the shelter's overall resilience. Meanwhile, the rear and side cladding consist of 8 mm safety glass, ensuring a safe and comfortable environment for commuters.
|
|
High-Quality Materials and Finishes
|
|

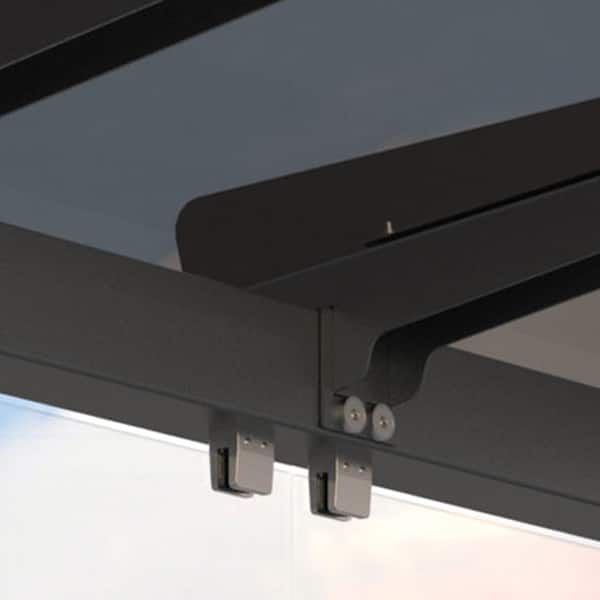

Branson Leisure is dedicated to using premium materials in our products, and the Venice Bus Shelter is no exception. The cladding attachments utilise a pinch-grip system made from Zamak alloy with a brushed finish, ensuring both strength and elegance. The entire structure is galvanised and painted in our signature colours, ensuring a durable and visually striking finish that can withstand harsh weather conditions.
The bronze-tinted polycarbonate roof adds a distinctive aesthetic element while providing excellent UV protection and weather resistance, creating a shelter that is both functional and visually distinguished within the urban landscape.
|
|
Passenger Amenities
|
|
Passenger convenience is at the heart of the Venice Bus Shelter design. It features a bus stop sign measuring 180 mm in height and 815 mm in width, made from galvanised steel sheet lacquered in RAL 9006, ensuring clear visibility and durability. Additionally, a timetable display case measuring 750 x 550 mm, which accommodates up to four A4 pages, is constructed from anodised aluminium, providing a sleek and practical solution for schedule display.
The integrated "2000" advertising display case (1750 mm x 1200 mm display area) provides valuable space for commercial messaging or public information, generating potential revenue streams for municipalities while enhancing the passenger experience.
|
|
Practical Features and Maintenance
|
|
The Venice Bus Shelter is engineered for efficient installation and minimal maintenance:
- Cantilevered design: Unique rear-cladding support by two single posts creates unparalleled brightness and an open, airy waiting environment.
- Modular capacity: Choose 2500 mm or 5000 mm length to suit passenger volumes and spatial constraints.
- Weather protection: Bronze-tinted 8 mm anti-UV-treated polycarbonate roof provides excellent resistance to fading, impact, and weathering while adding distinctive aesthetic appeal.
- Robust structure: 120 x 120 mm square steel posts and hot-dip galvanised roof beams provide exceptional strength and stability for high-traffic locations.
- Safety glass cladding: 8 mm safety glass rear and side panels provide wind protection while maintaining visual openness and passenger security.
- Integrated information displays: Anodised aluminium timetable case and "2000" advertising space enable clear passenger communication and potential revenue generation.
- Direct embedding: Concreted directly into ground for permanent, tamper-resistant placement in high-traffic locations.
- Low maintenance: Galvanised and painted steel frame resists corrosion; polycarbonate and safety glass components require only occasional cleaning.
- Coastal protection: Optional hot-dip galvanising treatment available for installations within 5 miles of the coast.
The robust construction and high-quality materials ensure decades of reliable performance with minimal upkeep.
|
|
Installation and Maintenance
|
|
Branson Leisure understands the importance of ease of installation and maintenance. The Venice Bus Shelter is designed to be concreted directly into the ground, simplifying the setup process and ensuring long-term stability in various urban environments. Our commitment to providing high-quality, easy-to-maintain products ensures that the Venice Bus Shelter remains a reliable fixture in any setting.
|
|
Applications
|
|
The Venice Bus Shelter is ideally suited for a wide range of public transport applications where distinctive design and passenger comfort are paramount:
- Municipalities: Enhancing public transport infrastructure in town centres, residential areas, and transport hubs with stylish, bright, weather-protected bus shelters.
- Transport operators: Providing comfortable, information-rich waiting environments that improve passenger experience and encourage public transport use.
- Commercial premises: Complementing retail parks, business districts, and hospitality venues with contemporary, functional transport infrastructure.
- Educational institutions: Supporting sustainable travel initiatives at schools, colleges, and universities with attractive, durable bus shelters.
- Healthcare facilities: Providing weather-protected waiting areas for patients, visitors, and staff at hospitals and clinics.
- Heritage and conservation areas: The distinctive cantilevered Venice design complements both traditional and contemporary streetscapes while providing modern functionality and passenger comfort.
Available in our full palette of RAL colours plus the popular Corten effect finish, and with bronze-tinted polycarbonate roofing for distinctive aesthetic appeal, the shelter can be tailored to complement existing streetscape elements or corporate branding.
|
|
About Branson Leisure
|
|
At Branson Leisure, our mission is to deliver innovative and durable urban furniture solutions. We take pride in our heritage of crafting products that not only meet but exceed the expectations of modern urban planners and architects. The Venice Bus Shelter is a testament to our ongoing efforts to enhance public spaces through thoughtful design and superior craftsmanship.
With over 35 years of French manufacturing expertise, all our products are designed and produced in our facilities in the Loir-et-Cher and Sarthe regions, adhering to the highest standards of quality, durability, and environmental responsibility. Our comprehensive range of street furniture—from bus shelters and bicycle stands to benches, litter bins, planters, and wayfinding solutions—enables cohesive, high-quality public realm projects.
Choose the Venice Bus Shelter and contribute to creating more comfortable and aesthetically pleasing urban environments. Contact us today to learn more about how the Venice Bus Shelter can be integrated into your urban development projects.
|
|
VENICE Collection
|
|
The Venice collection celebrates distinctive, cantilevered design for urban public transport infrastructure. With its unique rear-cladding support by two single posts for unparalleled brightness, robust 120 x 120 mm steel post construction, bronze-tinted anti-UV-treated polycarbonate roofing, 8 mm safety glass cladding with brushed Zamak pinch-grip attachments, integrated timetable and advertising displays, modular length options, versatile finish choices, and distinctive aesthetic appeal, the Venice Bus Shelter is an ideal choice for projects that prioritise visual distinction, passenger comfort, durability, user accessibility, and functional excellence within sustainable urban public transport infrastructure.
|
