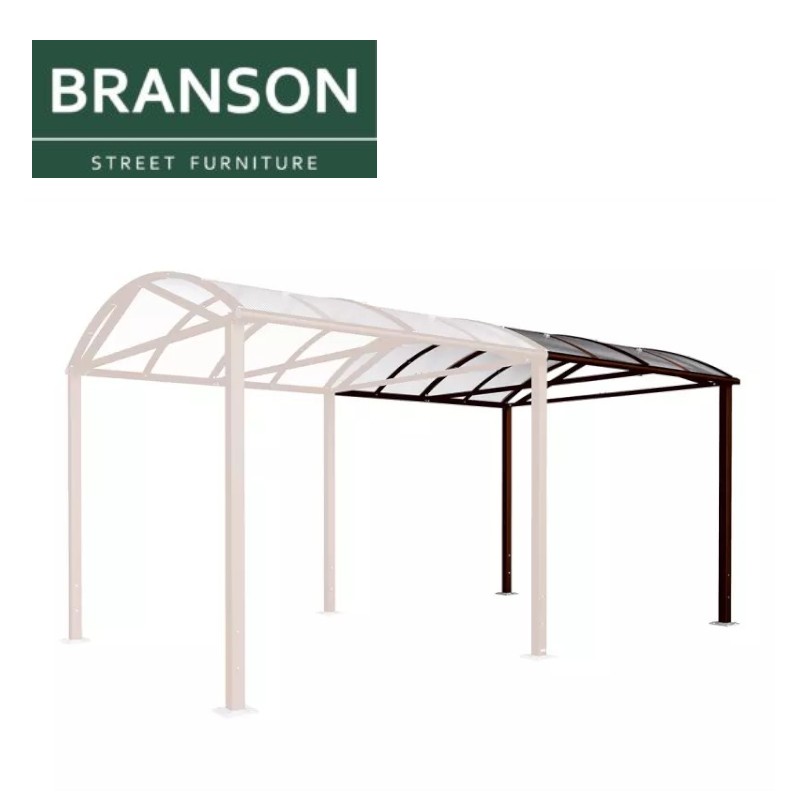

Voute “L” covered walkway

The "Large" Voute covered walkway offers optimal protection for pedestrians thanks to its width close to 3 meters (2830 mm depth). This generous depth creates a spacious, comfortable environment that accommodates high pedestrian volumes while maintaining clear circulation paths. The distinctive dome roof design with anti-UV-treated polycarbonate provides excellent weather protection while maintaining natural light transmission for a bright, welcoming environment.

The roof features 60 x 40 mm steel crossbars and aluminium rain gutters, painted in our colours, covered with anti-UV-treated 10 mm cellular polycarbonate dome. This material not only provides excellent protection against the elements but also ensures longevity by preventing UV damage. The dome structure offers optimal coverage, safeguarding pedestrians from harsh weather conditions while maintaining a sleek, modern appearance.

Optional side cladding in aluminium-profile frame with anti-UV-treated cellular polycarbonate panels provides enhanced wind protection and visual continuity for exposed locations. Optional LED lighting enables safe pedestrian circulation during low-light conditions.

- Spacious coverage: 2830 mm depth provides exceptional protection from rain and sun while accommodating high pedestrian volumes and maintaining clear circulation paths.
- Robust structure: 80 x 80 mm galvanised steel tube posts provide exceptional strength and stability for long-term durability in high-traffic locations.
- Superior weather protection: Anti-UV-treated 10 mm cellular polycarbonate dome with steel crossbars and aluminium rain gutters provides excellent resistance to fading, impact, and weathering while transmitting natural light.
- Modular design: 2500 mm standard module plus 2520 mm extension options enable flexible coverage for diverse site requirements.
- Easy installation: Height-adjustable feet on galvanised base plates accommodate uneven ground; expansion bolts included for secure fixation.
- Optional side cladding: Aluminium-profile frame with polycarbonate panels enhances wind protection and visual continuity.
- Optional LED lighting: Integrated LED strip enhances visibility and user safety during low-light conditions; professional electrical connection required.
- Low maintenance: Galvanised and painted steel frame resists corrosion; polycarbonate components require only occasional cleaning.
- Coastal protection: Optional hot-dip galvanising treatment available for installations within 5 miles of the coast.

The robust construction and high-quality materials ensure decades of reliable performance with minimal upkeep.

- Educational institutions: Connecting buildings at schools, colleges, and universities with spacious, sheltered walkways for students and staff during peak circulation times.
- Healthcare facilities: Providing weather-protected access between hospital buildings, clinics, and care facilities with generous depth for patient mobility equipment and high visitor volumes.
- Commercial premises: Linking office buildings, retail parks, and hospitality venues with elegant, functional covered walkways that accommodate high pedestrian throughput.
- Transport infrastructure: Connecting bus stops, train stations, and park-and-ride facilities with spacious, sheltered pedestrian routes for commuter comfort.
- Corporate campuses: Enhancing employee experience with stylish, functional covered walkways between buildings that accommodate peak-hour traffic.
- High-traffic public spaces: Enhancing town centres, civic squares, and cultural districts with spacious covered walkways that maintain clear pedestrian circulation while providing weather protection.

The modular design, optional side cladding, and optional LED lighting enable tailored solutions for diverse project requirements, from compact installations to extensive covered route networks with premium functionality.

Our comprehensive range of street furniture—from covered walkways and bus shelters to bicycle stands, benches, litter bins, planters, and wayfinding solutions—enables cohesive, high-quality public realm projects. By choosing Branson Leisure, you benefit from bespoke colour matching, technical consultation, and a commitment to sustainable design that enhances community spaces for generations.

Trust Branson Leisure to deliver the Voute "L" Covered Walkway—a spacious, robust, and aesthetically refined solution that supports sustainable pedestrian infrastructure while contributing to the visual integrity, functionality, and user experience of your public and commercial spaces.
