Reference: 529208.GPRO | Specification Date: 25/03/2026
|
|
Technical Features
|
| Available Lengths |
2500 mm (standard) | 5000 mm (double module) for greater passenger waiting capacity. |
| Total Depth |
1600 mm for comfortable passenger waiting space. |
| Square Posts |

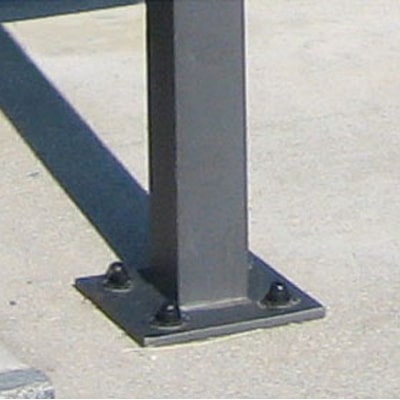

80 x 80 mm steel tubes on base plates for exceptional structural integrity and stability. |
| Under Roof Height |
2500 mm for universal accessibility and clear sightlines. |
| Roof Construction |
6 mm anti-UV-treated cellular polycarbonate for weather protection and natural light transmission. |
| Roof Frame |

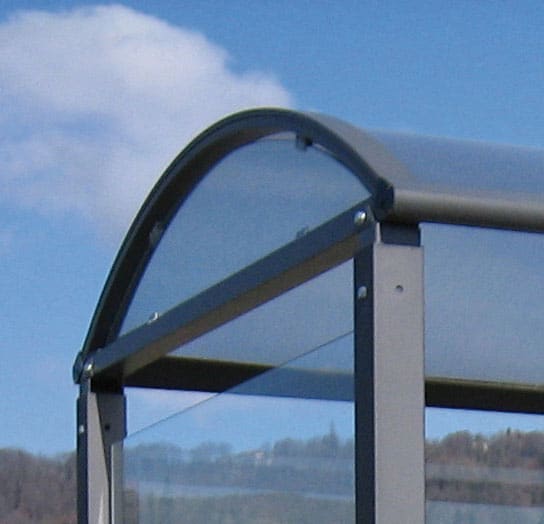

40 x 60 mm aluminium-tube crossbars and lateral beams. Barrel roof supports made from curved aluminium profiles for distinctive aesthetic appeal. |
| Rear and Side Cladding |
8 mm safety glass (rear cladding supplied as standard) for enhanced passenger protection, visual openness, and aesthetic appeal. |
| Cladding Attachments |

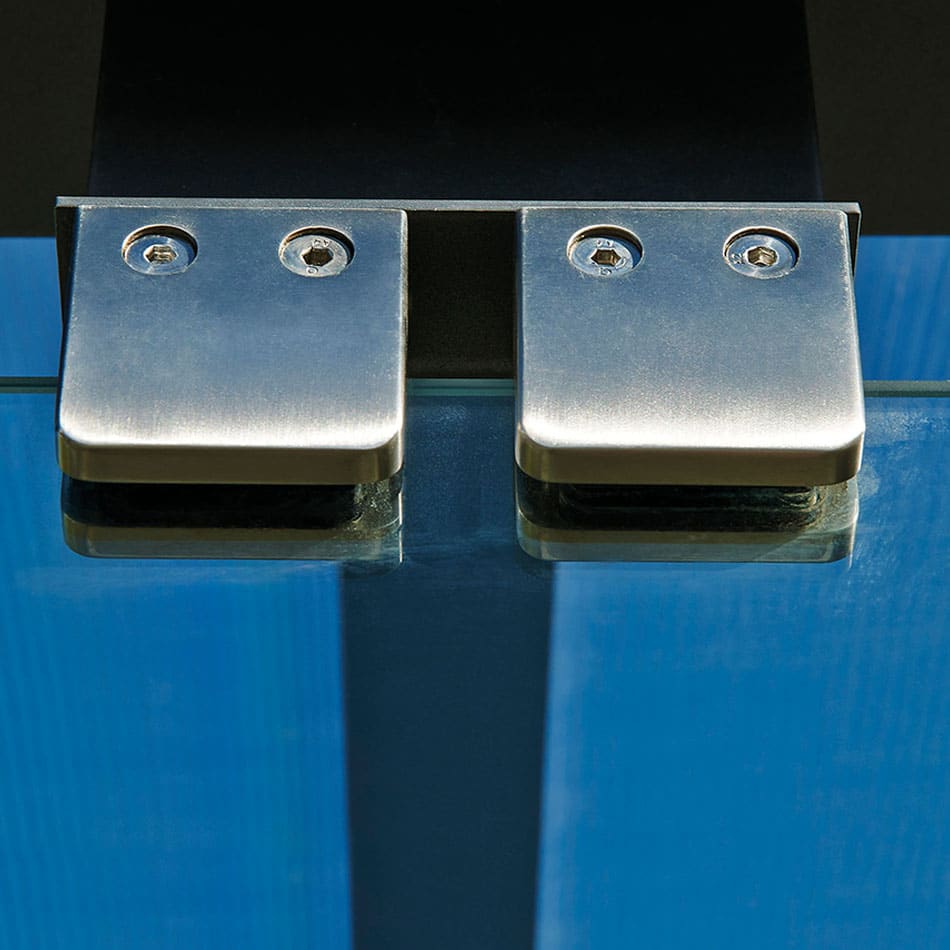

Pinch-grip system made from Zamak alloy with brushed finish for secure, aesthetically refined panel fixation. |
| Timetable Display Case |
750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium (supplied as standard) for durable, weather-resistant information display. |
| Advertising Space |
"2000" display case (1750 mm x 1200 mm display area) for commercial or public information messaging. |
| Finish |
Galvanised and painted in our colours. |
| Available Colours |
Procity Grey, RAL 9010, RAL 5010, RAL 3020, RAL 9005, RAL 7044, RAL 3004, RAL 6005, RAL 8017, Corten effect |
| Installation |
On base plates for secure permanent placement on concrete, paving, or tarmac. |
| Coastal Installation |
If installed within 5 miles of the coast, we strongly recommend an additional weather treatment for the steel work (hot-dip galvanising). Contact us for more details. |
|
Description
|
|
Branson Leisure is proud to present our Square Post Bus Shelters, expertly crafted to serve both urban and rural communities. Our products integrate seamlessly into various environments, offering robustness and aesthetic appeal. Originating from the same tradition of quality and innovative design that characterizes all Branson Leisure's solutions, our Square Post Bus Shelters come in two distinct lengths, 2500 mm and 5000 mm. These options provide flexibility to accommodate different passenger volumes, making them suitable for diverse settings, from busy city centres to quieter suburban areas.
|
|
Technical Specifications
|
|
The depth of our Square Post Bus Shelters is 1600 mm, ensuring ample space for waiting passengers. Constructed using 80 x 80 mm steel tubes with base plates, the square posts provide a sturdy and durable frame that can withstand various weather conditions and daily wear and tear. The under-roof height is set at 2500 mm, offering sufficient headroom for comfort and accessibility. The roof of our bus shelters is made from 6 mm anti-UV-treated cellular polycarbonate, providing protection from the sun and harsh weather conditions, while also being lightweight and resistant to impact. The roof frame incorporates 40 x 60 mm aluminium-tube crossbars and aluminium-profile rain gutters. Barrel roof supports are crafted from curved aluminium profiles, ensuring the structure is both durable and aesthetically pleasing.
All bus shelters are supplied with rear cladding and a timetable case as standard, ensuring immediate functionality upon installation.
|
|
Features
|
|
One of the standout features of the Square Post Bus Shelters is the use of 8 mm safety glass for both the rear and side cladding. This glass is not only strong but also provides clear visibility, enhancing the safety and comfort of the passengers. The cladding is attached using a sophisticated pinch-grip system made from Zamak alloy with a brushed finish, ensuring a secure fit and a modern appearance. Our bus shelters are equipped with a timetable display case that measures 750 x 550 mm, capable of displaying four A4 sheets, and is constructed from anodised aluminium. This feature ensures that passengers have access to up-to-date and clearly visible schedule information. For additional functionality, the shelters can be fitted with advertising spaces.
|
|
Practical Features and Maintenance
|
|
The Square Post Bus Shelter is engineered for efficient installation and minimal maintenance:
- Modular capacity: Choose 2500 mm or 5000 mm length to suit passenger volumes and spatial constraints.
- Spacious waiting area: 1600 mm depth provides ample room for multiple passengers while maintaining comfortable personal space.
- High headroom: 2500 mm under-roof height ensures excellent accessibility and an open, airy waiting environment.
- Weather protection: Anti-UV-treated 6 mm cellular polycarbonate roof with aluminium frame provides excellent resistance to fading, impact, and weathering.
- Robust structure: 80 x 80 mm steel posts provide exceptional strength and stability for high-traffic locations.
- Safety glass cladding: 8 mm safety glass rear and side panels provide wind protection while maintaining visual openness and passenger security.
- Integrated information displays: Anodised aluminium timetable case (supplied as standard) and "2000" advertising space enable clear passenger communication and potential revenue generation.
- Easy installation: Surface-mounted on base plates; no excavation required, minimising installation time and disruption.
- Low maintenance: Galvanised and painted steel frame resists corrosion; polycarbonate and safety glass components require only occasional cleaning.
- Coastal protection: Optional hot-dip galvanising treatment available for installations within 5 miles of the coast.
The robust construction and high-quality materials ensure decades of reliable performance with minimal upkeep.
|
|
Finish and Installation
|
|
Branson Leisure offers these shelters with a finish that includes galvanisation and painting in our range of colours, ensuring longevity and conformity with various aesthetic requirements. Installation is straightforward, as the shelters are designed to be mounted on base plates, making the process efficient and secure.
Available in our full palette of RAL colours plus the popular Corten effect finish, the shelter can be tailored to complement existing streetscape elements, architectural facades, or corporate branding.
|
|
Applications
|
|
The Square Post Bus Shelter is ideally suited for a wide range of public transport applications in both urban and rural settings:
- Municipalities: Enhancing public transport infrastructure in town centres, residential areas, and rural villages with stylish, weather-protected bus shelters.
- Transport operators: Providing comfortable, information-rich waiting environments that improve passenger experience and encourage public transport use.
- Rural communities: Providing durable, low-maintenance shelters for quieter suburban areas and country routes.
- Commercial premises: Complementing retail parks, business districts, and hospitality venues with contemporary, functional transport infrastructure.
- Educational institutions: Supporting sustainable travel initiatives at schools, colleges, and universities with attractive, durable bus shelters.
- Healthcare facilities: Providing weather-protected waiting areas for patients, visitors, and staff at hospitals and clinics.
The modular design and standard inclusion of rear cladding and timetable case enable ready-to-use installations across diverse environments.
|
|
